Seldén System 30 – High-Beam Self-Tacking Track, 2500 mm, Radius R5000

Description

Beskrivning

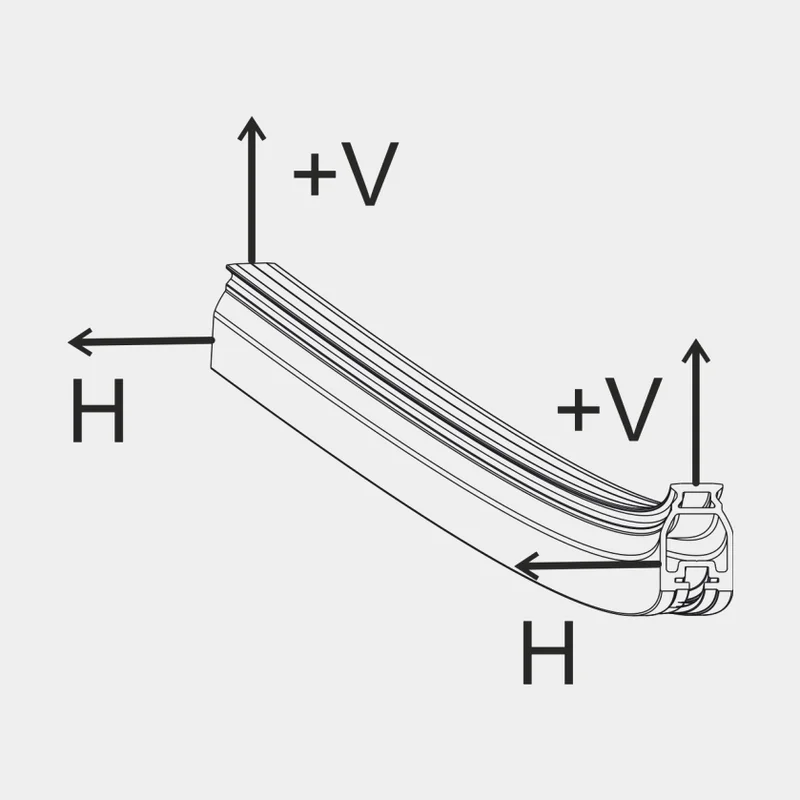

System 30 Self-tacking track. Length 2500 mm, Radius R5000. suitable for J-measurements 4700 – 6000mm.The System 30 High-Beam Self-Tacking Track is designed for yachts up to 10 ton displacement. A self-tacking jib makes life on board a lot easier, in particular for short handed crews. The jib sheet is led to a car which moves to leeward during the tack with no need to touch the sheet. Tacking is as simple as steering the boat through the wind.For retro-fit installations on boats ranging from 25’ to 45’, high beam tracks with a standard radius and standard length can be ordered from stock. The side consoles, deck fittings and a car are added to complete the system. A ball-joint allows for perfectalignment of the track to a 90° angle to the direction of load and for an easy installation to the deck or coach side. J-min: 4700 mmJ-max: 6000 mmRadius: 5000 mmLength: 2500 mmApplication: ST,MSS str: EndsUp
